GOTEC SA - MINIATURE SOLENOID PUMPS

SOME OF OUR VALUED CUSTOMERS

APPLICATION EXAMPLES

Industrial Ink Jet Printers

Hemodialysis Medical Equipment

Coffee & Beverage Dispensing

Chain Lubrication & Turbo Oilers

Floor Care - Scrubber Equipment

Chillers - Screw Compressors

Car Washing Equipment

Sanitizing & Medical Devices

Power & Steam Washers

Ceramic & Glass Printers

100% QUALITY CONTROL



While these pumps offer the highest level of quality, associated with the legendary Made in Switzerland label, it will give the customer and additional peace of mind, to know that each and every single pump manufactured is subjected to quality and operational checks, before ever leaving the factory.



100% Quality Control.



There are special quality & performance checks in place during the manufacturing process, through a number of test benches, that ensure that each pump closely adheres to the stringent pump specifications put forward by the company.

Gotec Test Bench

100% Quality Control

ETG 150 Pump Batch

QUALITY, COMPACT SOLENOID PUMPS



GOTEC SA - A worldwide leader of innovative compact pumps and accessories.



The pumps are deceptively simple in design, but their very simplicity makes them both robust and reliable with a minimum of moving parts. The applications for GOTEC pumps are many and varied, from drink dispensers to chemical dosing.



This design of Electromagnetic Piston Pump was pioneered by GOTEC SA, a long established simple and reliable design. The pumps are small, compact and quite powerful. The driving mechanism is integrated with the body of the pump and there is no need of a shaft seal. With only one moving part, these pumps are virtually maintenance-free and offer a very long life expectancy.



Designed & manufactured in Switzerland, they conform to the highest standards, such as ISO 9001, ROHS, CE, some UL and many other approvals to suit applications in various countries and industries.

POWERFUL COMPACT ELECTROMAGNETIC PISTON PUMPS & MINIATURE PUMPS

EKNP 17 PUMP MODEL



This particular pump is primarily used in floor cleaning equipment such as from Rug Doctor. This model also has optional lead cables built-in, as compared to the spade connectors on most of our standard pump models.

MAIN PUMP FEATURES



  • Motor & pump one integral block

  • Little wear on the piston

  • No shaft seals required

  • Auto-regulating

  • No suppression valves required

  • 100% Batch testing

  • Small size, high capacity

  • Light weight & portability

  • Self priming 10 Ft / 3 Meter

  • Wide flow and pressure range

  • Versatile, many applications

  • Wide range of mounting options

  • Uses standard AC electrical

  • Simple electrical connection

  • AC Volt 230V, 110V, 24V, 12VDC control possible

  • Flow can be controlled

  • Technical assistance

  • Customized versions possible

ELECTRICAL SUPPLY :



Standard voltages and frequencies are 230/50, 110/60, 100/50-60, 24/50-60, 12/50-60, special voltages can be arranged for upon request.



The pumps need a rectified AC signal via an in line diode, or a Pulsed DC Signal for their operation.



Control of the pump performance is possible, by controlling the pulse frequency.



Standard coils are in temperature class F (155°C) or class H (180°C) on request. The on-time can be continuous (100%ED) in general, rated for ambient & liquid temperature about 50 °C.



Standard pumps are available with two or three AMP style 6.3 x 0.8mm tinned brass male tabs terminals but wires or other connections are also possible on request.



Insulation class is 1 with required grounding for high voltage or reinforced class on request.





INSIDE MATERIALS :



The materials in contact are adapted to the liquid and to the specific pump functions. Brass, stainless steel and high-tech plastics are mainly used. Some pump designs have no O-ring or seal, for others, a complete range of elastomers is available, included FEP coated O-rings.

SMALL FOOTPRINT



The EMX 08 Pump, one of our best selling models, has a very small, compact footprint, which makes it ideal for a variety of applications with tight spaces. This particular model is used in a number of industrial ink jet printers, for the internal transfer of the inks.

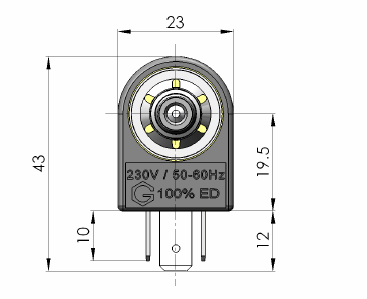

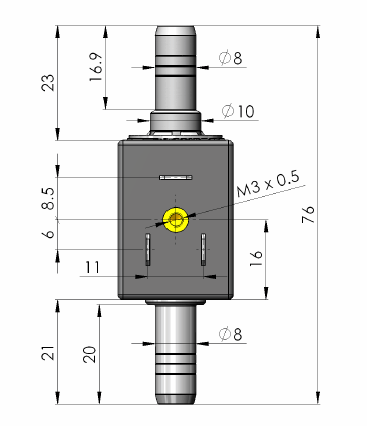

EMX 08 PUMP MODEL

Our Best-Seller !

( Dims : mm - Millimeters )

ETS PUMP CROSS-SECTION



Connected to an AC power supply, the coil generates a strong magnetic field which will move the piston of the pump back & forth, according to the frequency. This piston oscillation, with the help of built-in valves, moves the air and liquid from inlet to outlet of the pump.

HARD TO FIND PRODUCTS



DESIGN / ENGINEERING ASSISTANCE



FREE QUOTATIONS



HIGH QUALITY PRODUCTS



We are ready to help you with any of your product or project needs. Please make sure to let us know what you are looking for !



Contact us now !

PRODUCT - SELECTION :



Many other models & pump solutions are available. Please check with our office for additional product-specific information !

( APPLIES TO SELECTED MODELS )

Quality Solenoid Pumps

Gotec SA - Brochure

PDF Format

EMX 08 Pump - Details

Specification Sheet

PDF Format

ADDITIONAL

TECHNICAL SPEC SHEETS

PDF Format

For additional technical information on other Pump Models, please check our TECHNICAL PAGE and SPEC SHEETS, by following the above link !

EDS 03 MEMBRANE PUMP


The EDS 03 is a new generation of diaphragm pump ideally suited for transfer different aggressive or light polluted liquid media at low pressures and flow rates. While most of our other pumps are intended for fluid applications, this pump is also able to run dry and transfer small amounts of air for circulation or sampling. No maintenance and long life design.

ETS 17 PUMP MODEL

EBQ 120 PRESSURE PUMP

ESX 04 MINIATURE PUMP

EMS 10 POM POLYMER PUMP

TS ROTARY VANE PUMP

ADDITIONAL

TECHNICAL SPEC SHEETS

PDF Format

For additional technical information on other Pump Models, please check our TECHNICAL PAGE and SPEC SHEETS, by following the above link !

EMS 10 Pump Batch

Our pumps are primarily AC Voltage powered, and are available in 220V, 115V, 24V and 12 VAC. However, these pumps can also receive a DC pulsed signal, which requires a separate controller or controller board, for the generation of the pulsed DC signal.



Model PD-106 Driver Board, is a board level product intended for mounting in a customer provided enclosure. It is intended for use with Gotec solenoid piston pumps to drive the pumps with pulsed DC power. The board accepts 9-35 VDC input and has a pulsed 9-35 VDC output. The pulse length is fixed at a nominal 10ms and the dead time between pulses is adjustable via a potentiometer. The circuit can drive pumps up to 35 volts.

PD-106 DRIVER BOARD



For Gotec Solenoid Piston Pumps

DC current In, Pulsed DC Out
